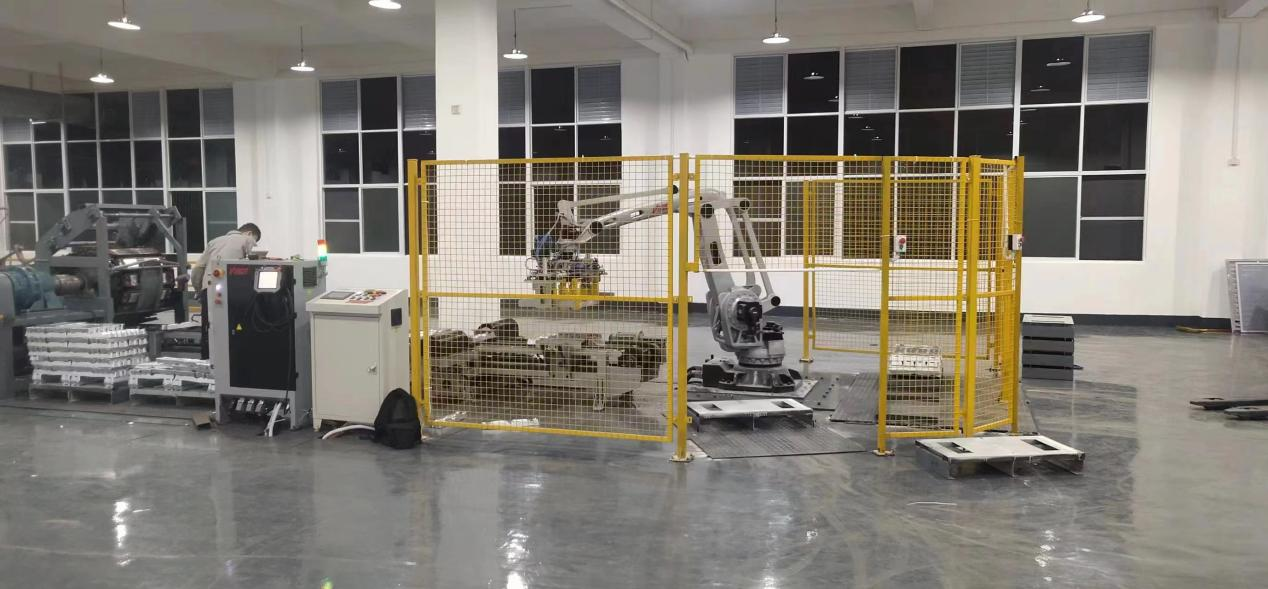

Stacking Robot

  A.Features

1. Driven by a Sifu motor, it has low operating noise, stable operation, low failure rate, and high coding accuracy.

 2. High work efficiency, which is 3-5 times that of traditional ingot stacking equipment. It can realize simultaneous ingot stacking of casting machines that consume more than 100% of the cost, saving money. User cost.

3. The adsorption volume is small and the installation methods are diverse, which can realize multi-point grabbing and multi-point placement.

4. It adopts a 6.4-inch color wave crystal display and a high-sensitivity touch screen. The operation interface is simple and visual and can be operated proficiently in half an hour. Handheld/embedded robot controller: Users need to set the number of palletizing layers and rotation angles according to their needs. Tens of thousands of palletizing programs can be stored and called directly, making the operation faster. 6. It can be used reliably in -25°C-50°C ambient temperature and oil mist environment.

  B.The main performance parameters

1.degree of freedom 4

2.drive mode: AC servo drive

3.repeat positioning accuracy:+0.1

4.range of motion:J:+165°J2:1500°J3 :2300°J2:+360°

5.maximum torque: J4:324(N.M)6.action ability:1000(note)(return / time7.movement radius:1500MM8.bulk weight: 1300kg
